圈帶傳動平衡機

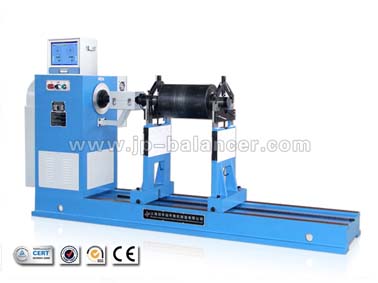

PHW-50萬向聯軸器傳動平衡機

產品說明:
  • 專業設計的擺架,有效傳遞機械力,堅固可靠,振動阻力小,鋼性好
  • 高靈敏度傳感器,線性度好,耐用可靠
  • 一次標定,永久使用,允許極高的初始不平衡量
  • 平衡機專用的萬向聯軸節傳動,動力傳遞平穩,啟動快,操作方便
  • 適用于轉子外圓不能採用圈带傳動装置或是要求很大的傳動功率
  • 先進的電測系统,友好的人機介面,功能强大
特 性:
  • 萬向節動平衡機具有可靠的設計並使用業界领先的測量系統。
  • 動、静平衡，支承方式多達10種，加去重、正反轉可靈活定制，測量顯示的平衡量及角度單位可自定義，顯示的精度也可任意定制，呈現單位可轉換，以滿足不同客户需求。

應用範圍:

主要應用于大中型馬達轉子、鼓風機、離心式送風機、烘缸、滾筒等旋轉體工件的平衡校驗。 本機採用萬 向聯軸節器或齒輪箱傳動,可獲得多種平衡轉速或無極調速，具有驅動功率大，精度高、操作方便等特點。


簡介:

上海剑平提供標準範圍的萬向節動平衡機，可以平衡從50千克重到最大30000千克直俓2800毫米的轉子。作為專業製造商，上海剑平也製造特殊水平動平衡機，可以適合所有類型的轉子。上海剑平公司的平衡機都是在ISO和客户廠標的要求下設計、製造和測試的。公司採用最新的成熟技術，提供無與倫比的精度和可重覆性，比市場上其它的機器都要快。


1. Special designed brackets can effectively transmit mechanical force
2. The durable and reliable sensor possesses high sensitivity
3. The permanent calibration brings high accuracy
4. Driven by universal coupling,transmit the power steadily
5. Applicable to rotors which can't be driven by belt or need large power
6. Advanced electrical measuring system and friendly man-machine interface

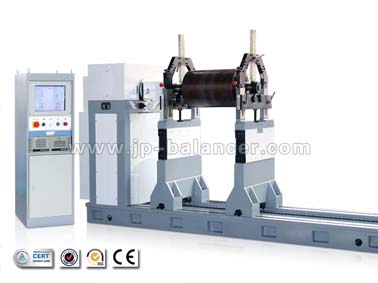

PHW-160H-500H平衡機

Applicable to Small workpieces
Technical data at a glance
PHW-160H
PHW-300H
PHW-500H
Mass Scope of Workpiece(kg)
160
300
500
Max Diameter of Workpiece(mm)
Φ1000
Φ1200
Φ1500
Distance Between Two Support Bearings(mm)
Min 60
Min 60
Min 60
Journal Diameter Scope of Workpiece(mm)
Φ15~752)
Φ15~752)
Φ15~752)
Max Distance between Driving Flange and Right Bearing Support (mm)
1500
1500
1500
Rotational Speed of the Main Axis(r/min)
600,10954)
600,10954)
600,10954)
Motor Power (kw)
31)
31)
41)
Torque of Universal Joint Shaft(N·m)
60
60
60
Length of Bed (mm)
2500
2500
2500
Min Achievable Residual Unbalance Amount(emar)
≤1g· mm/kg
≤1g· mm/kg
≤1g· mm/kg

1) Frequency conversion
2) Can add to 75-180
3)Can add to 120~240
4)Stepless speed regulation

特 性:
  • 萬向節動平衡機具有可靠的設計並使用業界领先的測量系統。
  • 動、静平衡，支承方式多達10種，加去重、正反轉可靈活定制，測量顯示的平衡量及角度單位可自定義，顯示的精度也可任意定制，呈現單位可轉換，以滿足不同客户需求。

應用範圍:

主要應用于大中型馬達轉子、鼓風機、離心式送風機、烘缸、滾筒等旋轉體工件的平衡校驗。 本機採用萬 向聯軸節器或齒輪箱傳動,可獲得多種平衡轉速或無極調速，具有驅動功率大，精度高、操作方便等特點。


1. Special designed brackets can effectively transmit mechanical force
2. The durable and reliable sensor possesses high sensitivity
3. The permanent calibration brings high accuracy
4. Driven by universal coupling,transmit the power steadily
5. Applicable to rotors which can't be driven by belt or need large power
6. Advanced electrical measuring system and friendly man-machine interface

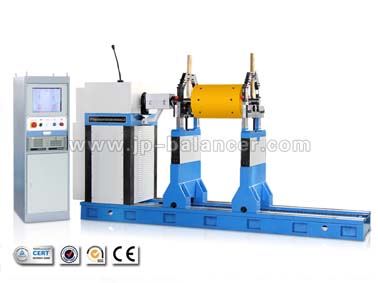

PHW-1000H-2000H平衡機

Applicable to Small workpieces
Technical data at a glance
PHW-1000H
PHW-2000H
Mass Scope of Workpiece(kg)
1000
2000
Max Diameter of Workpiece(mm)
Φ1600
Φ1800
Distance Between Two Support Bearings(mm)
Min 60
Min 60
Journal Diameter Scope of Workpiece(mm)
Φ25~1203)
Φ25~1203)
Max Distance between Driving Flange and Right Bearing Support (mm)
1600
1900
Rotational Speed of the Main Axis(r/min)
600,10954)
485,8184)
Motor Power (kw)
41)
7.51)
Torque of Universal Joint Shaft(N·m)
250
300
Length of Bed (mm)
2500
3000
Min Achievable Residual Unbalance Amount(emar)
≤1g· mm/kg
≤1g· mm/kg

1) Frequency conversion
2) Can add to 75-180
3) Can add to 120~240
4) Stepless speed regulation

特 性:
  • 萬向節動平衡機具有可靠的設計並使用業界领先的測量系統。
  • 動、静平衡，支承方式多達10種，加去重、正反轉可靈活定制，測量顯示的平衡量及角度單位可自定義，顯示的精度也可任意定制，呈現單位可轉換，以滿足不同客户需求。

應用範圍:

主要應用于大中型馬達轉子、鼓風機、離心式送風機、烘缸、滾筒等旋轉體工件的平衡校驗。 本機採用萬 向聯軸節器或齒輪箱傳動,可獲得多種平衡轉速或無極調速，具有驅動功率大，精度高、操作方便等特點。


1. Special designed brackets can effectively transmit mechanical force
2. The durable and reliable sensor possesses high sensitivity
3. The permanent calibration brings high accuracy
4. Driven by universal coupling,transmit the power steadily
5. Applicable to rotors which can't be driven by belt or need large power
6. Advanced electrical measuring system and friendly man-machine interface

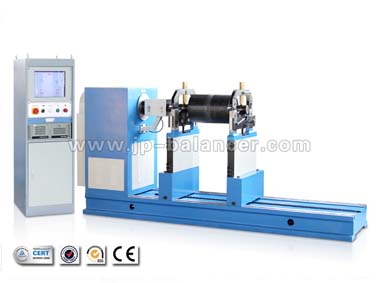

PHW-3000H平衡機

 Applicable to medium workpieces

Technical data at a glance
PHW-3000H
Mass Scope of Workpiece(kg)
3000
Max Diameter of Workpiece(mm)
Φ2100
Distance Between Two Support Bearings(mm)
Min 60
Journal Diameter Scope of Workpiece(mm)
Φ25~1203)
Max Distance between Driving Flange and Right Bearing Support (mm)
1900
Rotational Speed of the Main Axis(r/min)
133,225,396.
634,9704)
Motor Power (kw)
7.51)
Torque of Universal Joint Shaft(N·m)
700
Length of Bed (mm)
3000
Min Achievable Residual Unbalance Amount(emar)
≤1g· mm/kg

1) Frequency conversion
2) Can add to 75-180
3) Can add to 120~240
4) Stepless speed regulation

特 性:
  • 萬向節動平衡機具有可靠的設計並使用業界领先的測量系統。
  • 動、静平衡，支承方式多達10種，加去重、正反轉可靈活定制，測量顯示的平衡量及角度單位可自定義，顯示的精度也可任意定制，呈現單位可轉換，以滿足不同客户需求。

應用範圍:

主要應用于大中型馬達轉子、鼓風機、離心式送風機、烘缸、滾筒等旋轉體工件的平衡校驗。 本機採用萬 向聯軸節器或齒輪箱傳動,可獲得多種平衡轉速或無極調速，具有驅動功率大，精度高、操作方便等特點。


1. Special designed brackets can effectively transmit mechanical force
2. The durable and reliable sensor possesses high sensitivity
3. The permanent calibration brings high accuracy
4. Driven by universal coupling,transmit the power steadily
5. Applicable to rotors which can't be driven by belt or need large power
6. Advanced electrical measuring system and friendly man-machine interface

PHW-5000平衡機

Applicable to medium workpieces

Technical data at a glance
PHW-5000
Mass Scope of Workpiece(kg)
5000
Max Diameter of Workpiece(mm)
Φ2400
Distance Between Two Support Bearings(mm)
Min 320
Journal Diameter Scope of Workpiece(mm)
Φ40~380
Max Distance between Driving Flange and Right Bearing Support (mm)
2500
Rotational Speed of the Main Axis(r/min)
192,325,571,
915,14004)
Motor Power (kw)
151)
Torque of Universal Joint Shaft(N·m)
1250
Length of Bed (mm)
4000
Min Achievable Residual Unbalance Amount(emar)
≤1g· mm/kg

1) Frequency conversion
2) Can add to 75-180
3) Can add to 120~240
4) Stepless speed regulation
特 性:
  • 萬向節動平衡機具有可靠的設計並使用業界领先的測量系統。
  • 動、静平衡，支承方式多達10種，加去重、正反轉可靈活定制，測量顯示的平衡量及角度單位可自定義，顯示的精度也可任意定制，呈現單位可轉換，以滿足不同客户需求。

應用範圍:

主要應用于大中型馬達轉子、鼓風機、離心式送風機、烘缸、滾筒等旋轉體工件的平衡校驗。 本機採用萬 向聯軸節器或齒輪箱傳動,可獲得多種平衡轉速或無極調速，具有驅動功率大，精度高、操作方便等特點。

1. Special designed brackets can effectively transmit mechanical force
2. The durable and reliable sensor possesses high sensitivity
3. The permanent calibration brings high accuracy
4. Driven by universal coupling,transmit the power steadily
5. Applicable to rotors which can't be driven by belt or need large power
6. Advanced electrical measuring system and friendly man-machine interface

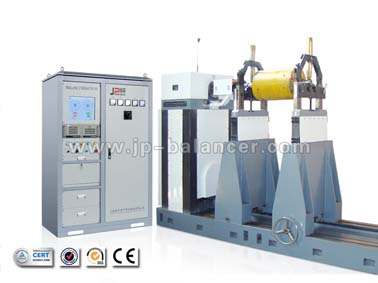

PHW-10000平衡機

Applicable to Large workpieces
Technical data at a glance
PHW-10000H
Mass Scope of Workpiece(kg)
10000
Max Diameter of Workpiece(mm)
Φ2400
Distance Between Two Support Bearings(mm)
Min 450
Journal Diameter Scope of Workpiece(mm)
Φ60~500
Max Distance between Driving Flange and Right Bearing Support (mm)
4000
Rotational Speed of the Main Axis(r/min)
Stepless speed
regulation
Motor Power (kw)
221)
Torque of Universal Joint Shaft(N·m)
1250
Length of Bed (mm)
4000
Min Achievable Residual Unbalance Amount(emar)
≤2g· mm/kg

1) Frequency conversion
2) Can add to 75-180
3) Can add to 120~240
4) Stepless speed regulation
特 性:
  • 萬向節動平衡機具有可靠的設計並使用業界领先的測量系統。
  • 動、静平衡，支承方式多達10種，加去重、正反轉可靈活定制，測量顯示的平衡量及角度單位可自定義，顯示的精度也可任意定制，呈現單位可轉換，以滿足不同客户需求。

應用範圍:
主要應用于大中型馬達轉子、鼓風機、離心式送風機、烘缸、滾筒等旋轉體工件的平衡校驗。 本機採用萬 向聯軸節器或齒輪箱傳動,可獲得多種平衡轉速或無極調速，具有驅動功率大，精度高、操作方便等特點。

1. Special designed brackets can effectively transmit mechanical force
2. The durable and reliable sensor possesses high sensitivity
3. The permanent calibration brings high accuracy
4. Driven by universal coupling,transmit the power steadily
5. Applicable to rotors which can't be driven by belt or need large power
6. Advanced electrical measuring system and friendly man-machine interface
