萬向聯軸器傳動平衡機

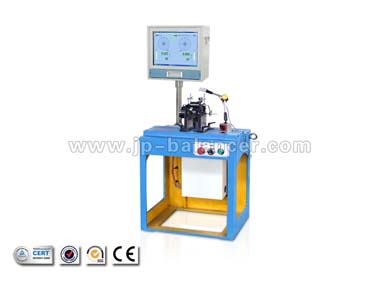

PHQ-1.6-5圈帶傳動平衡機

產品說明：
  • 專業設計的擺架,有效傳遞機械力,堅固可靠,振動阻力小,鋼性好
  • 高靈敏度傳感器,線性度好,耐用可靠
  • 永久標定測量原理,精度高,允許極高的初始不平衡量
  • 圈帶傳動結構,更高的測量精度,使用更方便
  • 先進的電測系统,友好的人機介面,功能强大
  • 模組化設計,應用範圍廣
特 性：
  • 圈帶平衡機採用先進的電測系統，測量方式多樣化。
  • 動、静平衡，支承方式多達10種，加去重、正反轉可靈活定制，測量精度高，採用多重定標系數組合，自動調整系統靈敏度，換檔無跳躍，軟硬件双重濾波，高速數據壓縮，測量更穩、更準、更快。
應用範圍：
圈帶平衡機廣泛應用于各類中小型電機轉子、葉輪、曲軸、滾筒及軸類等旋轉體工件的平衡校正。採用圈帶驅動，保證了工件的平衡質量及精度，具有裝卸方便，啟動快、工作效率高等特點。

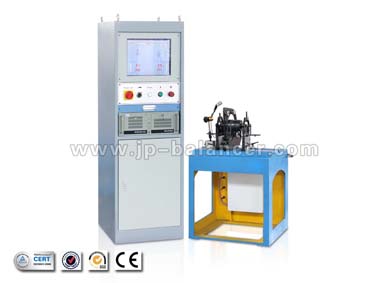

PHQ-1.6A-16A圈帶傳動平衡機

Applicable to small workpieces
Technical data at a glance
PHQ-1.6A/5A
PHQ-16A
Max Mass of Workpiece(kg)
1.6/5
16
Max Diameter of Workpiece (mm)
Φ300
Φ300
Distance Between Two Support Bearings (mm)
60~500
60~500
Journal Diameter Scope of Workpiece (mm)
Φ 3~40
Φ 5~40
Diameter Scope of Driving Belt (mm)
Φ15~150
Φ15~150
Rotational Speed when the Diameter of Driving Belt is 100mm (r/min)
~1470
~1470
Motor Power (kw)
0.23DC
0.23DC
Min Achievable Residual Unbalance Amount (emar)
≤0.3g· mm/kg
≤0.3g· mm/kg

1) Stepless speed regulation
2) Frequency conversion
3) Can add to 75-180
4) Can add to 120-240


特 性:
  • 圈帶平衡機採用先進的電測系統，測量方式多樣化。
  • 動、静平衡，支承方式多達10種，加去重、正反轉可靈活定制，測量精度高，採用多重定標系數組合，自動調整系統靈敏度，換檔無跳躍，軟硬件双重濾波，高速數據壓縮，測量更穩、更準、更快。


應用範圍:

圈帶平衡機廣泛應用于各類中小型電機轉子、葉輪、曲軸、滾筒及軸類等旋轉體工件的平衡校正。採用圈帶驅動，保證了工件的平衡質量及精度，具有裝卸方便，啟動快、工作效率高等特點。


1.Specially designed brackets transmit mechanical force with low vibration damping
2.Durable and reliable sensor possesses good linearity
3.Permanent calibration brings high accuracy with a permission of large initial unbalance amount
4.Belt-driving offers higher precision and easier operation
5.Advanced electrical measuring system and friendly man-machine interface
6.Modular design offers a wide range of application

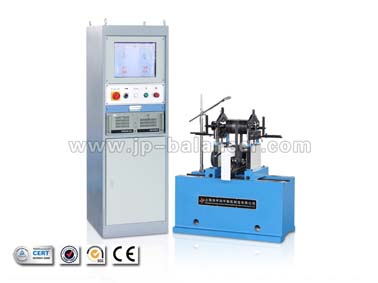

PHQ-50圈帶傳動平衡機

Applicable to small workpieces
Technical data at a glance
PHQ-50
Max Mass of Workpiece(kg)
50
Max Diameter of Workpiece (mm)
Φ700
Distance Between Two Support Bearings (mm)
80~700
Journal Diameter Scope of Workpiece (mm)
Φ 8~80
Diameter Scope of Driving Belt (mm)
Φ18~200
Rotational Speed when the Diameter of Driving Belt is 100mm (r/min)
700,10501)
Motor Power (kw)
0.752)
Length of Bed (mm)

Min Achievable Residual Unbalance Amount (emar)
≤0.5g· mm/kg

1) Stepless speed regulation
2) Frequency conversion
3) Can add to 75-180
4) Can add to 120-240
特 性:
  • 圈帶平衡機採用先進的電測系統，測量方式多樣化。
  • 動、静平衡，支承方式多達10種，加去重、正反轉可靈活定制，測量精度高，採用多重定標系數組合，自動調整系統靈敏度，換檔無跳躍，軟硬件双重濾波，高速數據壓縮，測量更穩、更準、更快。


應用範圍:

圈帶平衡機廣泛應用于各類中小型電機轉子、葉輪、曲軸、滾筒及軸類等旋轉體工件的平衡校正。採用圈帶驅動，保證了工件的平衡質量及精度，具有裝卸方便，啟動快、工作效率高等特點。


1.Specially designed brackets transmit mechanical force with low vibration damping
2.Durable and reliable sensor possesses good linearity
3.Permanent calibration brings high accuracy with a permission of large initial unbalance amount
4.Belt-driving offers higher precision and easier operation
5.Advanced electrical measuring system and friendly man-machine interface
6.Modular design offers a wide range of application

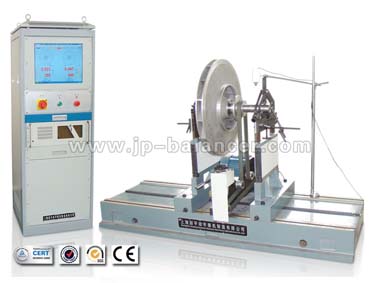

PHQ-160H-500H圈帶傳動平衡機

Applicable to medium workpieces
Technical data at a glance
PHQ-160H
PHQ-300H
PHQ-500H
Max Mass of Workpiece(kg)
160
300
500
Max Diameter of Workpiece (mm)
Φ1000
Φ1220
Φ1500
Distance Between Two Support Bearings (mm)
130~1270
130~1270
130~1270
Journal Diameter Scope of Workpiece (mm)
Φ 15~753)
Φ 15~753)
Φ 15~753)
Diameter Scope of Driving Belt (mm)
Φmax400
Φmax500
Φmax600
Rotational Speed when the Diameter of Driving Belt is 100mm (r/min)
756,11761)
756,11761)
756,11761)
Motor Power (kw)
1.52)
1.52)
2.22)
Length of Bed (mm)
1500
1500
1500
Min Achievable Residual Unbalance Amount (emar)
≤0.5g· mm/kg
≤0.5g· mm/kg
≤0.5· mm/kg

1) Stepless speed regulation
2) Frequency conversion
3) Can add to 75-180
4) Can add to 120-240

特 性:
  • 圈帶平衡機採用先進的電測系統，測量方式多樣化。
  • 動、静平衡，支承方式多達10種，加去重、正反轉可靈活定制，測量精度高，採用多重定標系數組合，自動調整系統靈敏度，換檔無跳躍，軟硬件双重濾波，高速數據壓縮，測量更穩、更準、更快。

應用範圍:
圈帶平衡機廣泛應用于各類中小型電機轉子、葉輪、曲軸、滾筒及軸類等旋轉體工件的平衡校正。採用圈帶驅動，保證了工件的平衡質量及精度，具有裝卸方便，啟動快、工作效率高等特點。


1.Specially designed brackets transmit mechanical force with low vibration damping
2.Durable and reliable sensor possesses good linearity
3.Permanent calibration brings high accuracy with a permission of large initial unbalance amount
4.Belt-driving offers higher precision and easier operation
5.Advanced electrical measuring system and friendly man-machine interface
6.Modular design offers a wide range of application

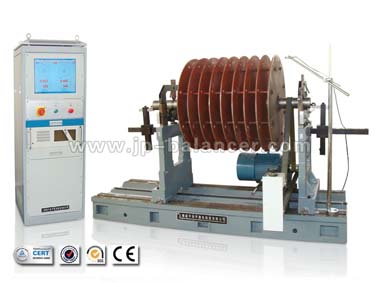

PHQ-1000H-3000H圈帶傳動平衡機

Applicable to large workpieces
Technical data at a glance
PHQ-1000H
PHQ-2000H
PHQ-3000H
Max Mass of Workpiece(kg)
1000
2000
3000
Max Diameter of Workpiece (mm)
Φ1600
Φ1800
Φ2100
Distance Between Two Support Bearings (mm)
160~1780
160~2280
160~2780
Journal Diameter Scope of Workpiece (mm)
Φ 25~1204)
Φ25~1204)
Φ25~1204)
Diameter Scope of Driving Belt (mm)
Φmax700
Φmax800
Φmax900
Rotational Speed when the Diameter of Driving Belt is 100mm (r/min)
1330,19181)
684,9861)
921,13291)
Motor Power (kw)
42)
5.52)
7.52)
Length of Bed (mm)
2000
2500
3000
Min Achievable Residual Unbalance Amount (emar)
≤0.5g· mm/kg
≤0.5g· mm/kg
≤0.5g· mm/kg

1) Stepless speed regulation
2) Frequency conversion
3) Can add to 75-180
4) Can add to 120-240

特 性:
  • 圈帶平衡機採用先進的電測系統，測量方式多樣化。
  • 動、静平衡，支承方式多達10種，加去重、正反轉可靈活定制，測量精度高，採用多重定標系數組合，自動調整系統靈敏度，換檔無跳躍，軟硬件双重濾波，高速數據壓縮，測量更穩、更準、更快。


應用範圍:

圈帶平衡機廣泛應用于各類中小型電機轉子、葉輪、曲軸、滾筒及軸類等旋轉體工件的平衡校正。採用圈帶驅動，保證了工件的平衡質量及精度，具有裝卸方便，啟動快、工作效率高等特點。

1.Specially designed brackets transmit mechanical force with low vibration damping
2.Durable and reliable sensor possesses good linearity
3.Permanent calibration brings high accuracy with a permission of large initial unbalance amount
4.Belt-driving offers higher precision and easier operation
5.Advanced electrical measuring system and friendly man-machine interface
6.Modular design offers a wide range of application

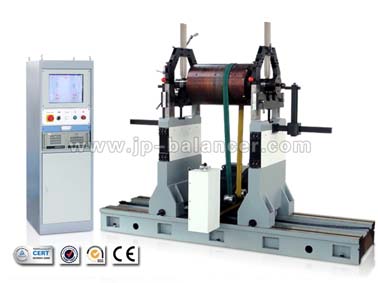

PHQ-5000圈帶傳動平衡機

Applicable to large workpieces
Technical data at a glance
PHQ-5000
Max Mass of Workpiece(kg)
5000
Max Diameter of Workpiece (mm)
Φ2400
Distance Between Two Support Bearings (mm)
160~3200
Journal Diameter Scope of Workpiece (mm)
Φ25~1204)
Diameter Scope of Driving Belt (mm)
Φ40~400
Rotational Speed when the Diameter of Driving Belt is 100mm (r/min)
921,13291)
Motor Power (kw)
152)
Length of Bed (mm)
3500
Min Achievable Residual Unbalance Amount (emar)
≤0.5· mm/kg

1) Stepless speed regulation
2) Frequency conversion
3) Can add to 75-180
4) Can add to 120-240

特 性:
  • 圈帶平衡機採用先進的電測系統，測量方式多樣化。
  • 動、静平衡，支承方式多達10種，加去重、正反轉可靈活定制，測量精度高，採用多重定標系數組合，自動調整系統靈敏度，換檔無跳躍，軟硬件双重濾波，高速數據壓縮，測量更穩、更準、更快。


應用範圍:

圈帶平衡機廣泛應用于各類中小型電機轉子、葉輪、曲軸、滾筒及軸類等旋轉體工件的平衡校正。採用圈帶驅動，保證了工件的平衡質量及精度，具有裝卸方便，啟動快、工作效率高等特點。


1.Specially designed brackets transmit mechanical force with low vibration damping
2.Durable and reliable sensor possesses good linearity
3.Permanent calibration brings high accuracy with a permission of large initial unbalance amount
4.Belt-driving offers higher precision and easier operation
5.Advanced electrical measuring system and friendly man-machine interface
6.Modular design offers a wide range of application
